Metal Sheet Deep Drawing Hydraulic Press Machine with Ce SGS 100ton/200ton/315ton/400ton/500ton
parameter name |
Unit |
YQ32-63A |
YQ32-63B |
YQ32-100A |
YQ32-100B |
YQ32-160 |
YQ32-200A |
Nominal force |
KN |
630 |
630 |
1000 |
1000 |
1600 |
2000 |
Hydraulic system maximum pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
Max opening height of the slide |
mm |
500 |
700 |
800 |
800 |
800 |
800 |
Max stroke of the slide |
mm |
360 |
400 |
500 |
500 |
500 |
400 |
Workbench effective area |
mm |
410×450 |
610×500 |
630×550 |
750×700 |
660×600 |
800×800 |
Ejector cylinder nominal force |
KN |
100 |
100 |
200 |
200 |
400 |
400 |
the stroke of the eject |
mm |
160 |
160 |
200 |
200 |
200 |
220 |
Slider speed |
down mm/s |
100 |
100 |
100 |
100 |
100 |
100 |
press mm/s |
5-10 |
5-10 |
5-10 |
5-15 |
5-10 |
5-10 |
|
return mm/s |
90 |
90 |
90 |
90 |
90 |
90 |

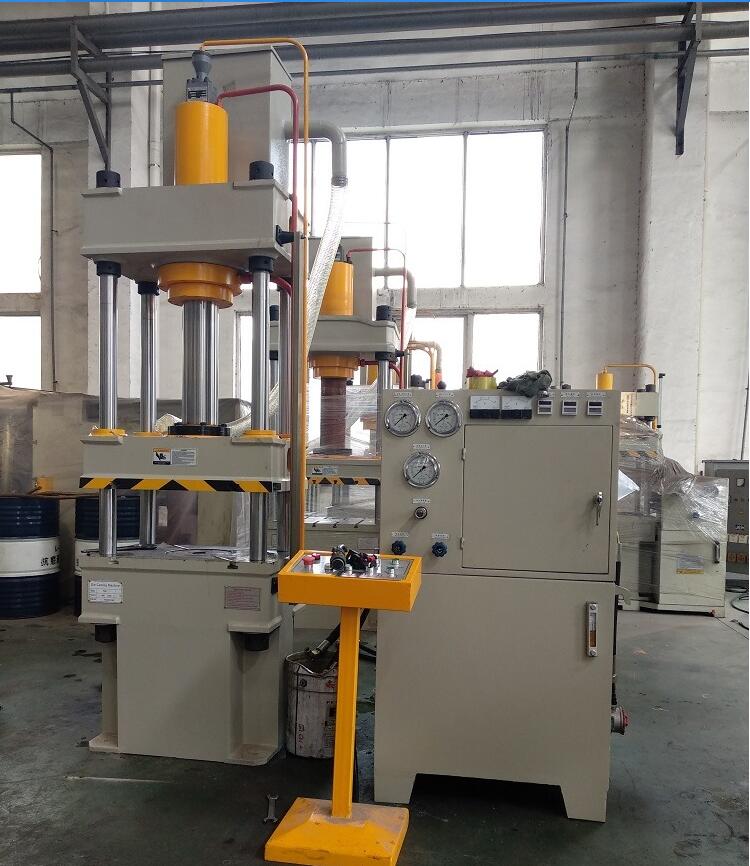

The deep drawing hydraulic press machine is Metal Sheet Deep Drawing Hydraulic Press Machine with Ce SGS 100ton/200ton/315ton/400ton/500ton, suitable for metal materials such as stretching, bending, flanging, cold, punching and other processes, but also for calibration, press, powder products, abrasive products compression molding and plastic products, The compression molding of the insulating material.
Features
1. Computer optimization structure design, four-column structure is simple, economical and practical; frame structure is good rigidity, high precision, anti-partial load capacity.
2. Hydraulic control using plug-in base system, reliable action, long life, small hydraulic shock, reducing the continuous pipeline and leaks.
3. The use of imported PLc control of the electrical system is compact, work sensitive, reliable, flexible; relay control system is reliable, intuitive action, easy maintenance.
