Specifications

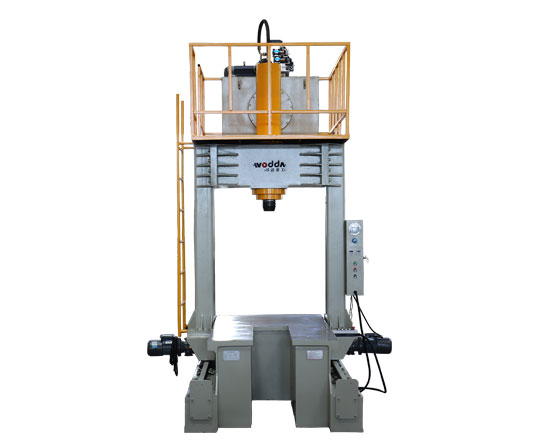

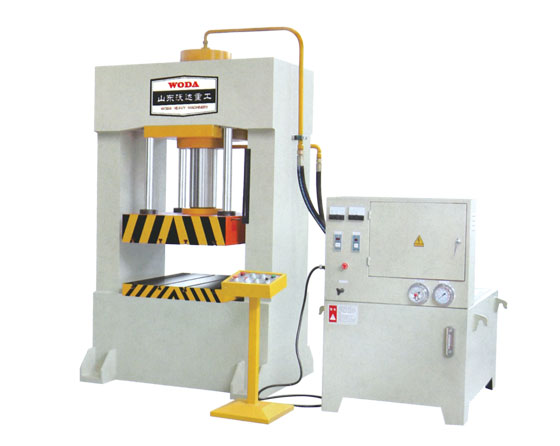

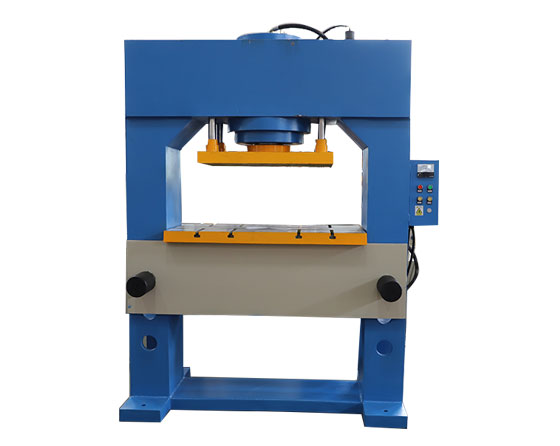

Portal frame series hydraulic press can be customized different tonnage different workstations according to customer request, the machine parts can be assembled, disassembly, straightening, calendering, stretching, bending, punching and other work, the real realization of a multi-purpose machine. Machine table can move up and down, greatly expanding the machine opening and closing height, the use of more convenient.
Parameter
Model |
YM-60tA |
YM-60tB |
YM-80tA |
YM-80tB |
Max liquid working pressure (Mpa) |
30 |
30 |
31.5 |
31.5 |
Stroke (mm) |
200 |
200 |
300 |
300 |
Span length (mm) |
500 |
500 |
520 |
720 |
Working table size (mm) |
400×460 |
400×460 |
500×450 |
700×450 |
Motor power (kw) |
3 |
5.5 |
5.5 |
5.5 |
Displacement oil pump (ml/r) |
5 |
10 |
10 |
25 |
Descent speed (mm/s) |
6 |
12 |
9 |
23 |
Return speed (mm/s) |
8 |
16 |
13 |
34 |
