China Manufactory Gantry Type Deep Drawing Hydraulic Press Machine 200ton

parameter name	Unit	YQ32-63A	YQ32-63B	YQ32-100A	YQ32-100B	YQ32-160	YQ32-200A
Nominal force	KN	630	630	1000	1000	1600	2000
Hydraulic system maximum pressure	Mpa	25	25	25	25	25	25
Max opening height of the slide	mm	500	700	800	800	800	800
Max stroke of the slide	mm	360	400	500	500	500	400
Workbench effective area	mm	410×450	610×500	630×550	750×700	660×600	800×800
Ejector cylinder nominal force	KN	100	100	200	200	400	400
the stroke of the eject	mm	160	160	200	200	200	220
Slider speed	down mm/s	100	100	100	100	100	100
	press mm/s	5-10	5-10	5-10	5-15	5-10	5-10
	return mm/s	90	90	90	90	90	90

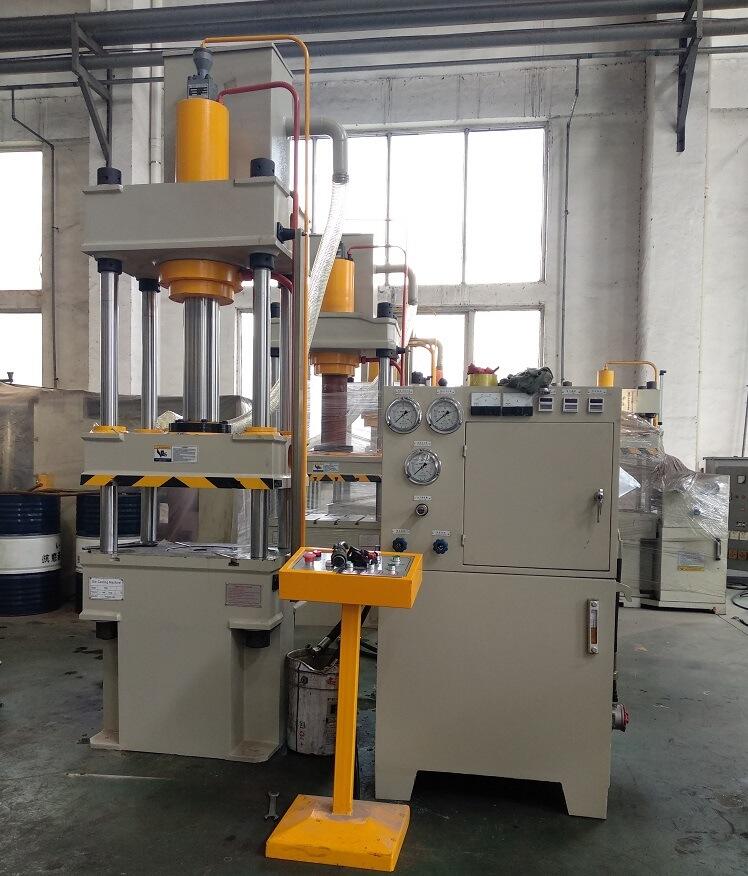

The deep drawing hydraulic press machine is Metal Sheet Deep Drawing Hydraulic Press Machine with Ce SGS 100ton/200ton/315ton/400ton/500ton, suitable for metal materials such as stretching, bending, flanging, cold, punching and other processes, but also for calibration, press, powder products, abrasive products compression molding and plastic products, The compression molding of the insulating material.
