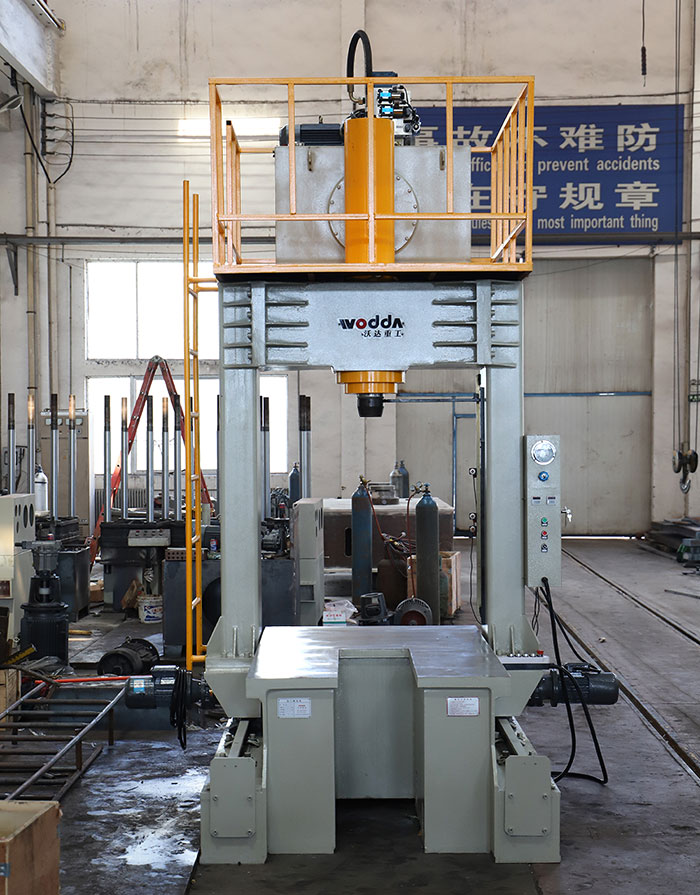

100 Ton H Frame Hydraulic Press Machine
Specifications
Portal frame series hydraulic press can be customized different tonnage different workstations according to customer request, the machine parts can be assembled, disassembly, straightening, calendering, stretching, bending, punching and other work, the real realization of a multi-purpose machine. Machine table can move up and down, greatly expanding the machine opening and closing height, the use of more convenient.
Appliance field :
Gantray frame hydraulic press is suitable for metal and non-metallic materials, the pressing process can also be used for plastic molding of the material. For example, watches, metal products, bicycles, motorcycles, tableware, electrical appliances, rubber, ceramics, powder metallurgy, etc.
Parameter
| Model | YM-100tA | YM-100tB |
| Max liquid working pressure (Mpa) | 31.5 | 31.5 |
| Stroke (mm) | 300 | 300 |
| Span length (mm) | 520 | 720 |
| Working table size (mm) | 500×500 | 700×500 |
| Motor power (kw) | 5.5 | 5.5 |
| Displacement oil pump (ml/r) | 10 | 25 |
| Descent speed (mm/s) | 7.5 | 19 |
| Return speed (mm/s) | 10 | 25 |
